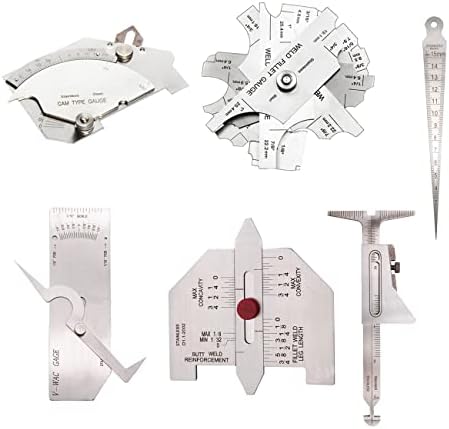

• ❤6 PCS WELD GAUGE SET❤ Package Includes 1 x Cam Type Gauge, 1 x Weld Fillet Gauge, 1 x Hi-Lo Welding Gauge, 1 x Taper Welding Gauge, 1 x Undercuts Checking Gauge, 1 x Convexity Concavity Checking Gauge, 6 x Instructions, 6 x Pouches. These Weld Gauges Are Suitable for Measuring Length, Height, Width and Angle for Welding. Made of Stainless Steel.

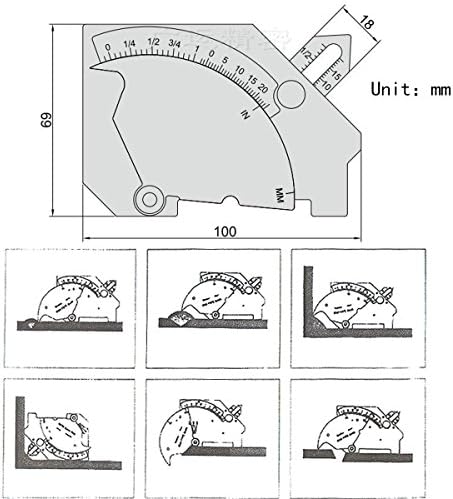

• ❤CAM TYPE GAUGE❤ Linear Measure Range: 0-60mm (0-2 in), Curving Measure Range: 0-20mm (0-1 in), Angle Measure Range: 0-60 Degree.

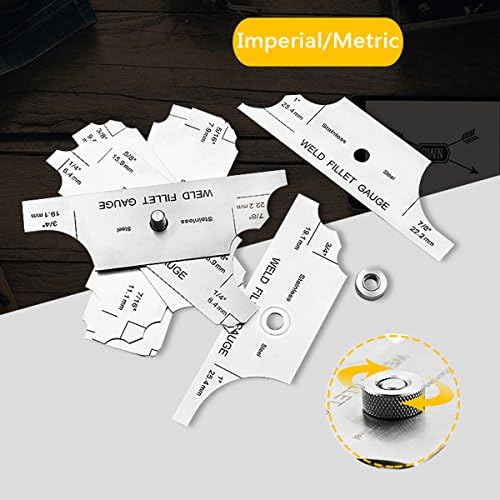

• ❤WELD FILLET GAUGE❤ Metric Measure Range: 3mm, 4mm, 5mm, 6mm, 8mm 9mm, 10mm, 11mm, 12mm, 14mm, 16mm, 19mm, 22mm and 25mm While Accuracy is Less Than +/- 0.5mm. Imperial Measure Range: 1/8” (3.2mm), 3/16” (4.8mm), 1/4” (6.4mm), 5/16” (7.9mm), 3/8” (9.5mm), 7/16” (11.1mm), 1/12” (12.7mm), 5/8” (15.9mm), 3/4” (19.1mm), 7/8” (22.2mm) and 1” (25.4mm) While Accuracy is Less Than +/- 1/50” .

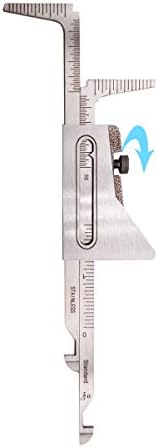

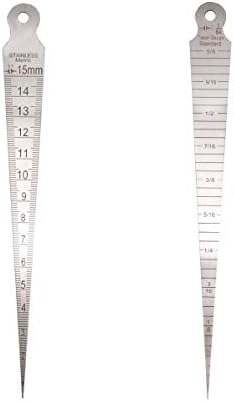

• ❤HI-LO GAUGE & TAPER GAUGE❤ Hi-Lo Gauge Can Be Used for Measuring Internal Misalignment, Gap, Bevel, The Crown Height of Welds, Fillet Weld Size, Scribe Line, Socket Welds. The Range of The Taper Gauge is 1-15mm (1/32-5/8 inch) with Accuracy of 0.1mm (1/64 inch). Accurate And Can Be Used for Measuring Diameters of Small Holes, Slots, Gap, Etc.

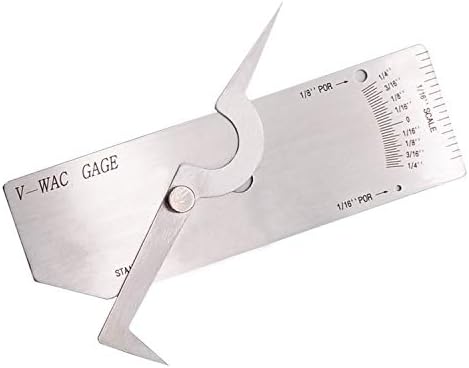

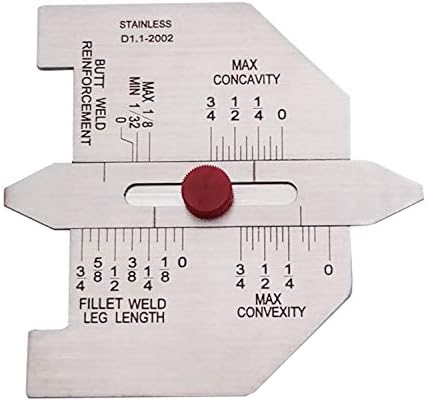

• ❤ UNDERCUTS CHECKING GAUGE & CONVEXITY CONCAVITY GAUGE❤ The Former Can Be Used to Check Undercuts Depth, Crown Height and Porosity And The Range is 0-1/4'' with 1/16'' Scale. With Fastening Screw to Read Measuring Result Easily. The Latter Can Be Used to Check The Tolerance of Convexity And Concavity And The Range is 0-3/4''. With Fastening Screw Can Be Fixed at Any Point Which Is Convenient for Readings.
